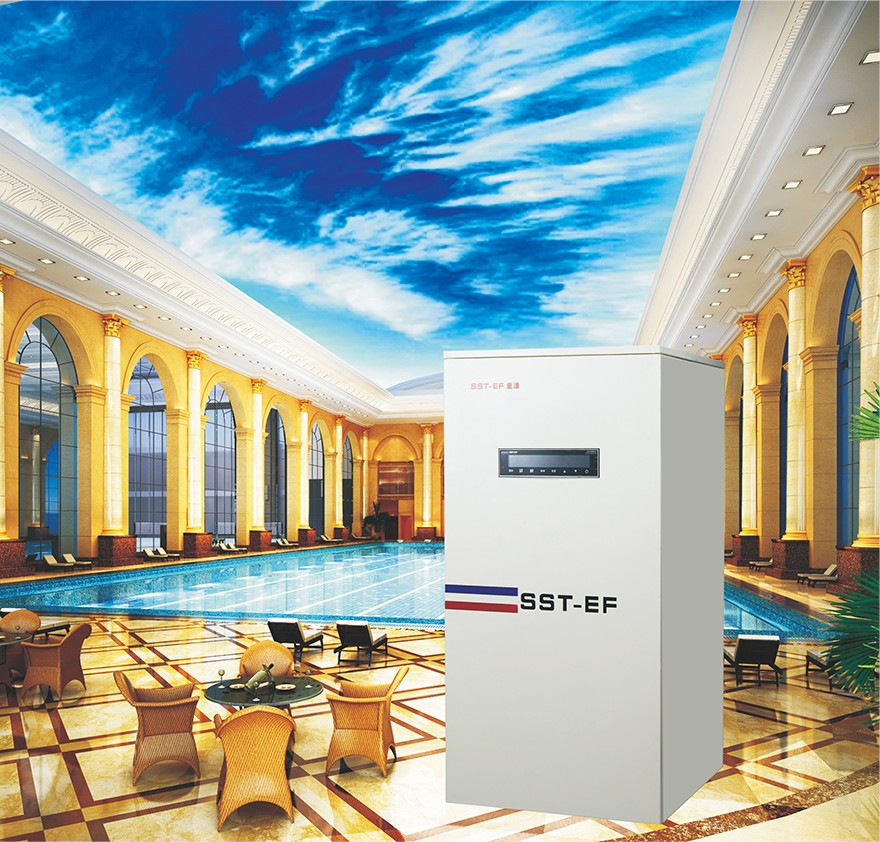

大型芯片热水机

市场售价:38800



详细介绍:

Automatic intelligent control All-weather system heating

1. by water, easy installation, simple maintenance

2. The water temperature up to 80 ℃, and the water temperature is set free, such as micro-creating considerate comfort

3. comes backwater control, water supply quickly, to enjoy five-star service.

4. Pressurized water tank design, cold, hot water do not mix, the greater the amount of water, the water temperature constant

5. many series, using direct thermal water supply, but also with water tank.

6. Automatic control, use more peace of mind


全自动智能控制 全天候系统供热

1. 自带水箱,安装方便、维修简单

2.出水温度高达80℃,且水温自由设定,创造体贴如微的舒适度

3.自带回水控制,热水供应迅速,享受五星等级的服务。

4.承压式水箱设计,冷、热水不混合,供水量更大,水温恒定

5.可多台串联,采用直热式供水,也可搭配水箱使用。

6.全自动控制,使用更省心




Technical parameters/技术参数

Product Model
产品型号
XP500Appecirancecolor
外观颜色
Pearl White
珍珠内
power range
功率范围
12KWProduct Net Weight
产品净重
200KG
Rated voltage/Frequency
额定电压/频率
220V/50HzDimensions
外形尺寸
650×650×1200mm
Volume
容积
200LTemperature range
温度范围
35~80°C
Waterproof grade
防水等级
IPX4Installation
安装方式
Vertical
立式
Rated wire demands
额定水压
0. 6MPaWater preesure
电线要求
220V / 380V
Meter require
电表要求
≥10 (30) AA air switch
空气开关
≥60A
