市场售价：158000
详细介绍：

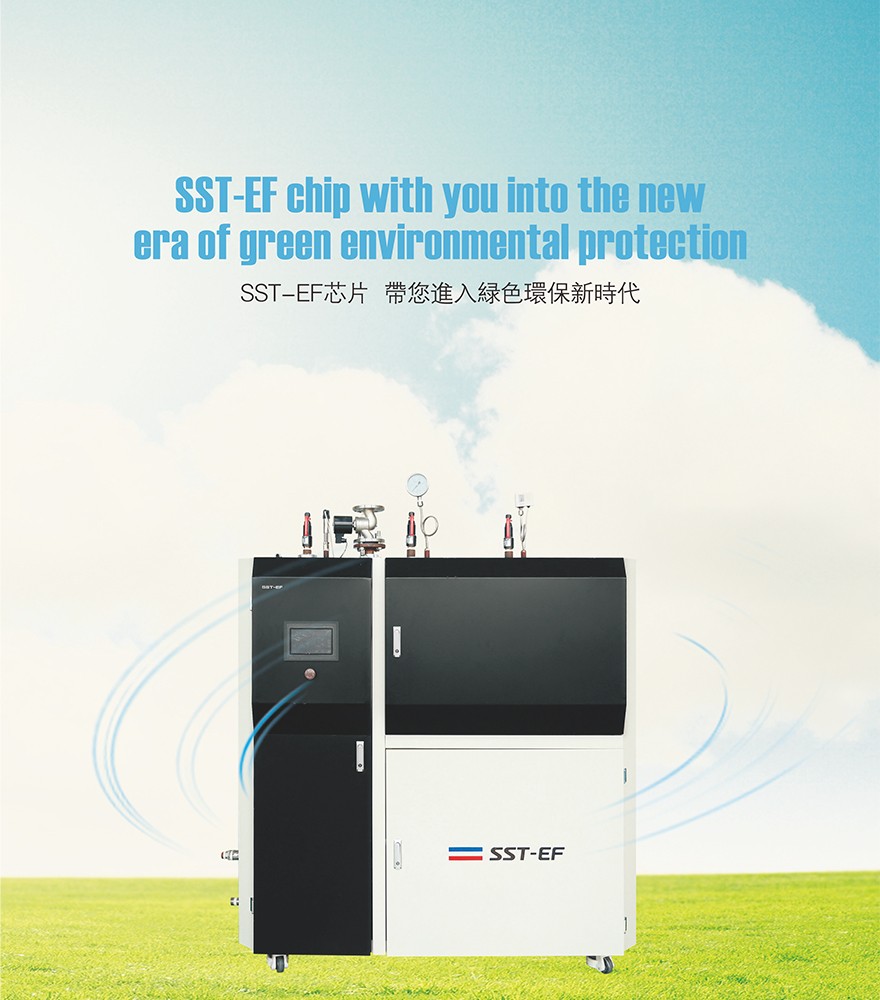

Electronic integrated chip steam engine
SST-EF method for efficient regenerative steam boiler module consists of three main body composed of a parallel steam into the cylinder at the same time, according to the different requirements of temperature, setting out steam pressure, the three body mutually standby, automatic control, intelligent and flexible; small volume, can be installed nearby, saving pipeline loss and installation cost equipped with high temperature; water tank,make full use of peak valley price, to achieve the best energy saving state; no guards management professional boiler,saves a lot of manpower, financial resources, creating more value for the enterprise.
电子集成芯片蒸汽机
SST-EF意法高效蓄热模块式蒸汽锅炉由三个本体组合而成，并联出汽，同时进入分汽缸，根据不同温度要求，设定出汽压力，三个本体互为备用，可自动调控，智能灵活；设备体积小，可就近安装，节省管道损耗及安装成本；配备高温水箱，充分利用峰谷电价，达到节能状态；无需专业锅炉人员管理看守，节省大量人力、财力，为企业创造更高价值。
Technical parameters/技术参数
| Product model 产品型号 | XPGL-240 | XPGL-180 |
| Rated evaporation(T/h) 额定蒸发量(T/h) | 0.5 | 0.3 |
| Rated power (Kw) 额定功率(Kw) | 240 | 180 |
| Rated current (A) 额定电流(A) | 440 | 360 |
| Working voltage(V) 工作电压(V) | 380 | 380 |
| Rated working pressure (Mpa) 额定工作压力(Mpa) | 0.-0.6 | 0.3-0.6 |
| Power line cross-sectional area (mm²) 电源线截面积(mm²) | 4*120三相四线 | 4*90三相四线 |
| Thermal efficiency 热效率 | 98.9%以上 | 98.9%以上 |
| Saturation temperature range(°C) 饱和温度范围(°C) | 133-158 | 133-158 |
| Net weight (Kg) 净重(Kg) | 400 | 350 |
| Safety valve (mm) 安全阀(mm) | 20 | 20 |
| Inlet pipe diameter (mm) 进水管口径(mm) | 16 | 16 |
| Outlet pipe diameter (mm) 出气管口径(mm) | 40 | 32 |
| Discharge pipe diameter (mm) 排污管口径(mm) | 25 | 25 |
| Packing size (mm) 装箱尺寸(mm) | 2000*800*1700 | 1500*700*1700 |
